Tensor-Level Anatomy of Multimodal Fusion
🔹 Step 1 — Input Image

⸻

1. Overview

Modern “multimodal” LLMs such as GPT-4o, Gemini 2, and Claude 3 Opus are often described as seeing or understanding images.

In reality, the LLM never looks at pixels.

It receives dense visual embeddings produced by a separate vision transformer encoder (ViT).

The reasoning and interpretation — the actual “understanding” — happen entirely inside the LLM.

⸻

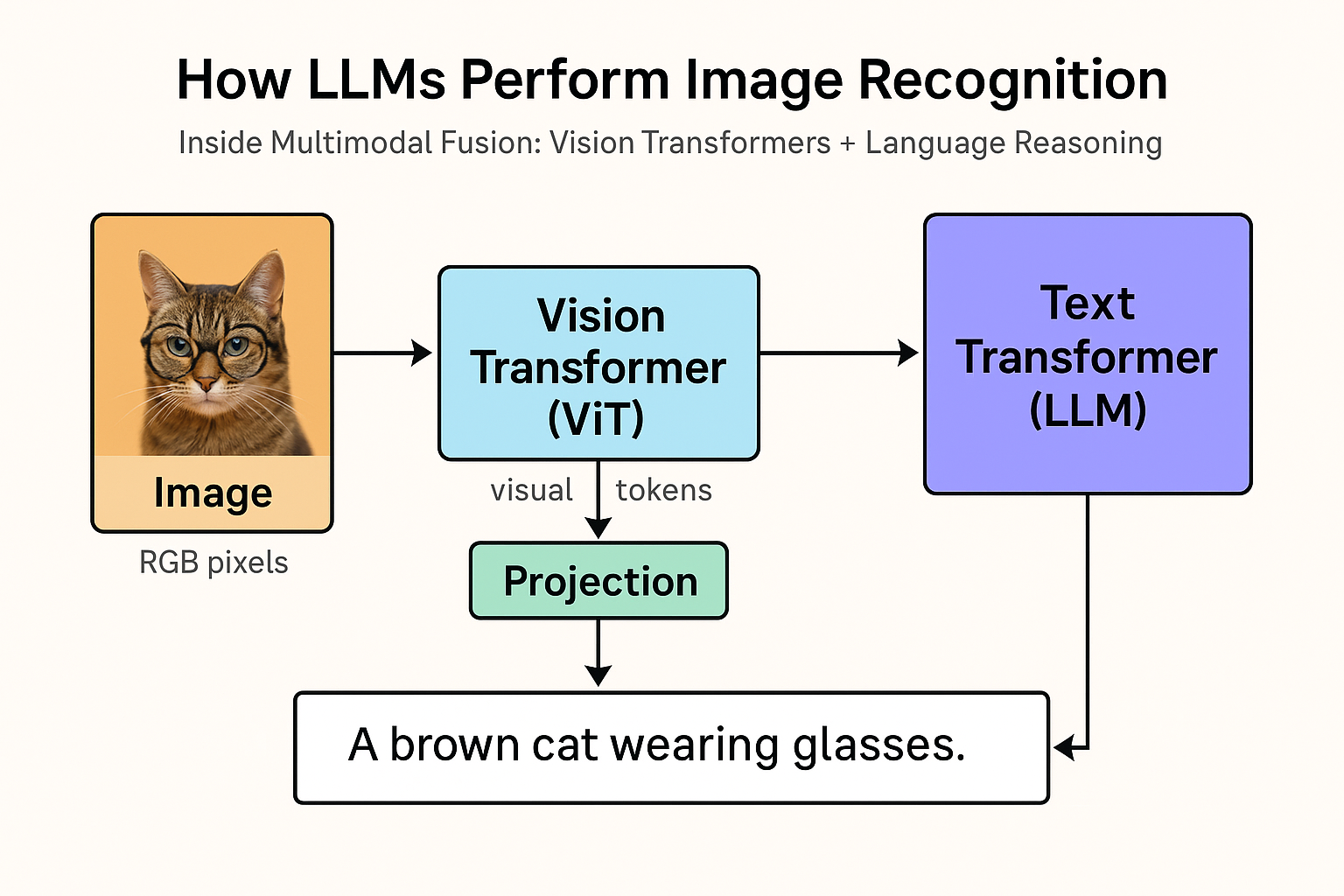

2. System Architecture

Image (RGB pixels)

↓

Patchify (e.g., 16×16 patches)

↓

Vision Transformer (ViT / CLIP-style encoder)

↓

Visual Tokens [v₁, v₂, …, vₙ]

↓

Projection Layer (dimension alignment)

↓

Language Transformer (LLM backbone)

↓

Text Output (caption, classification, reasoning)

⸻

3. Roles of Each Component

Component | Function | Analogy |

Vision Transformer (ViT) | Encodes raw pixels into high-dimensional vectors; captures spatial & texture patterns | Retina / early visual cortex |

Projection Layer | Maps visual embeddings into the same vector space as text tokens | Optic nerve |

Language Transformer (LLM) | Performs reasoning, abstraction, explanation, and dialogue | Prefrontal cortex |

⸻

4. How the “Label” Emerges

The ViT does not send a label such as “cat” or “dog.”

Instead, it sends a set of learned embeddings that geometrically encode cat-ness — shapes, edges, fur texture, posture.

The LLM then interprets those embeddings through cross-attention and generates the word “cat” when prompted.

During multimodal training, models learn these mappings through paired datasets:

Input: [image embeddings] + “Describe the image.”

Target: “A brown cat wearing glasses.”

⸻

5. Fusion Mechanisms

Mode | Description | Used By |

Feature Projection (Concat) | Project visual tokens into LLM embedding space, concatenate before text | GPT-4o, Gemini 1.5 |

Cross-Attention Fusion | LLM has vision-specific attention layers that attend to visual tokens directly | Gemini 2, Kosmos-2 |

Joint Token Space (Unified Encoder) | Vision and text share transformer blocks | Experimental research only |

⸻

6. Tensor-Level View

At runtime:

ViT output → sequence of embeddings V ∈ ℝⁿˣᵈᵥ
Projection layer → map to text dimension P(V) ∈ ℝⁿˣᵈₜ
Token concatenation:

[ P(v₁)…P(vₙ) t₁…tₘ]

LLM attention operates jointly:

Queries (Q), Keys (K), Values (V) built over both image and text tokens
Cross-modal reasoning emerges naturally

Output logits → textual response (caption, classification, or reasoning chain)

⸻

7. Example

Prompt:

“What’s unusual about this image?”

ViT encodes patches → [fur pattern] [eyes] [object: glasses] [pose] [background] …

LLM cross-attends to those embeddings and concludes:

“Cats don’t usually wear glasses — that’s unusual.”

The reasoning and judgment occur in the language model, not the vision model.

⸻

8. Key Takeaways

🧠 LLM = reasoning engine, not sensor.
🖼️ Vision Transformer = sensory encoder, not interpreter.
⚙️ Projection layer = bridge between modalities.
🔄 Training objective teaches the LLM to map from visual geometry to linguistic meaning.

⸻

TL;DR

Multimodal LLMs don’t “see” — they think about what’s been seen.

The vision encoder translates pixels into a token language, and the LLM performs all higher-order cognition on that internal code. the ViT has no idea what it’s looking at in human terms. It’s just compressing visual structure into embeddings — dense geometric coordinates in feature space.

It’s the LLM that translates that geometry into language and reasoning.

So when a multimodal model says “a cat sitting on a couch,” here’s what actually happened:

Vision Transformer:

Encodes the image into ~1,000 visual tokens, each representing patch-level structure (edges, textures, color gradients).

It has never been told “this is a cat” — it only knows patterns.

Projection layer:

Aligns the ViT’s embedding space with the LLM’s token space — same dimensionality, compatible distributions.

⸻

LLM (text transformer): Performs attention over both text and visual embeddings, infers relationships (“round ears + fur + tail = cat”), then produces the natural-language description.

So the LLM is really doing “vision-language reasoning.”

The ViT is a preprocessor, not a thinker — the LLM is the cognitive core.

⸻

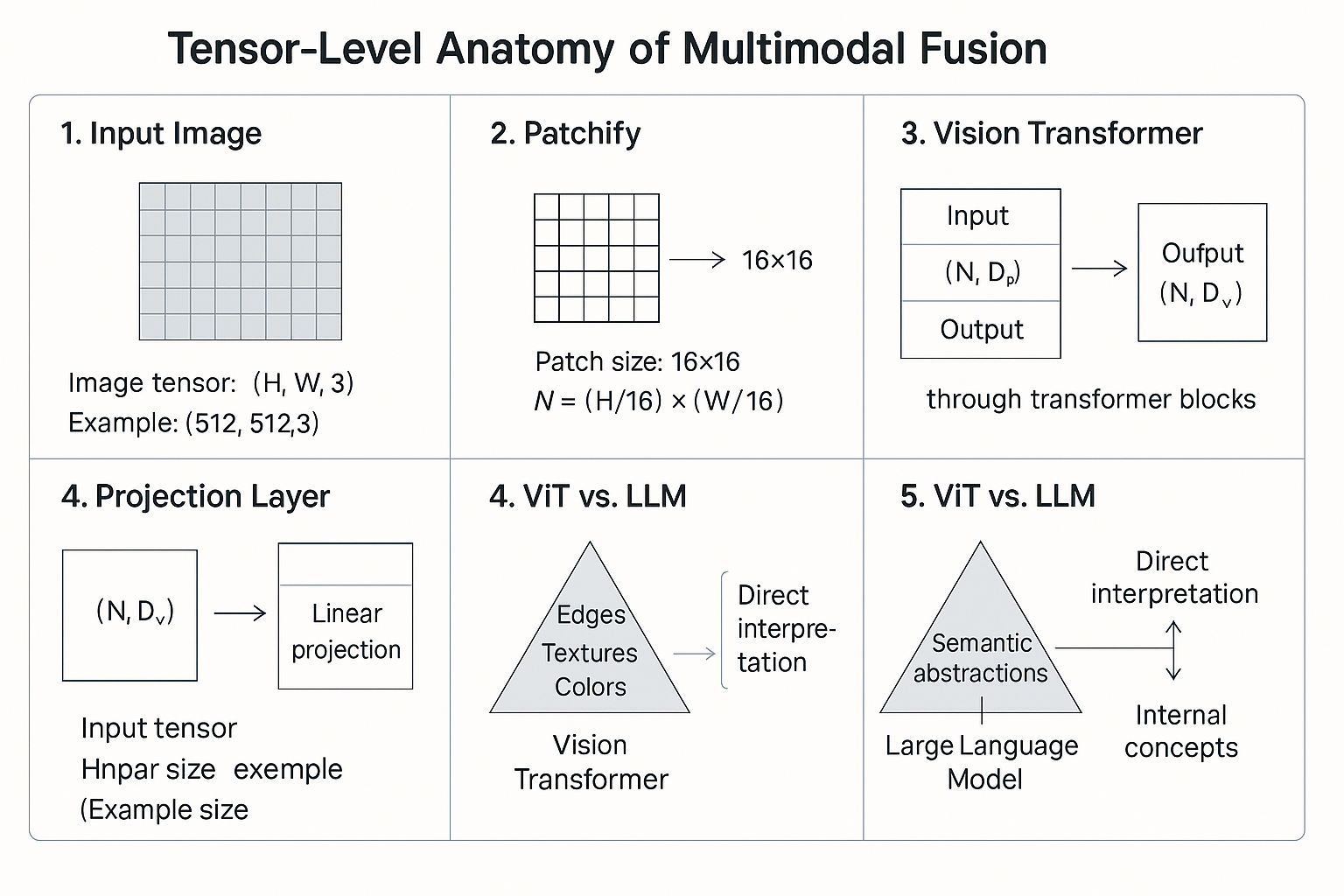

9. Tensor-Level Anatomy of Multimodal Fusion

Let’s trace a single RGB image as it moves through a modern multimodal LLM pipeline — from raw pixels to natural-language reasoning.

⸻

🔹 Step 1 — Input Image

Image tensor: (H, W, 3)

Example: (512, 512, 3)

Each pixel has 3 channels (R, G, B).

⸻

🔹 Step 2 — Patchify

The image is divided into small fixed-size patches.

Patch size: 16×16

Number of patches N = (H/16) × (W/16) = 1024

Each patch is flattened → 16×16×3 = 768-D vector.

⸻

🔹 Step 3 — Vision Transformer (ViT)

Each patch embedding passes through multiple transformer blocks:

Input: (N, D_v) = (1024, 768)

Output: (N, D_v) = (1024, 1024)

The ViT learns rich spatial features — edges, texture, color, geometry —

but no language semantics.

Result: a sequence of visual embeddings

V ∈ ℝⁿˣᵈᵛ = (1024, 1024)

⸻

🔹 Step 4 — Projection Layer

We map the visual embeddings into the text-token dimension D_t.

Linear projection: W_proj ∈ ℝᵈᵛˣᵈᵗ

P(V) = V × W_proj

Output: (N, D_t) = (1024, 4096)

Now the visual vectors live in the same space as the LLM’s word tokens.

⸻

🔹 Step 5 — Token Fusion

The visual tokens are concatenated before the text tokens.

[ P(v₁)…P(v₁₀₂₄) t₁…tₘ ]

Sequence length L = N + M

Typical values: N≈1024, M≈512–2048.

⸻

🔹 Step 6 — Joint Attention in the LLM

Within the transformer blocks:

Q, K, V ∈ ℝˡˣᵈₜ (e.g., 4096)

Attention weights: softmax(QKᵀ / √d_t)

The LLM now attends across both modalities:

attends from words → visual tokens (cross-attention)
attends within visual tokens (self-attention)
attends within words (language context)

This is where semantic grounding happens.

⸻

🔹 Step 7 — Feed-Forward Reasoning

Each transformer block integrates visual + textual context:

Residual + MLP → LayerNorm → Next Block

Through dozens of blocks, the model builds an internal conceptual map:

“Fur texture + eye shape + whisker geometry → cat.”

⸻

🔹 Step 8 — Output Projection

Finally, logits are produced for the vocabulary:

LLM hidden state: (L, D_t)

→ Linear head W_vocab ∈ ℝᵈᵗˣᵛ (V = vocab size)

→ Softmax → Text output

Example Output:

“A brown cat wearing glasses.”

⸻

⚙️ Shape Summary

Stage | Tensor Shape | Description |

|——–|—————|————-|

Raw image | (512, 512, 3) | RGB pixels |

Patches | (1024, 768) | Flattened 16×16 regions |

ViT output | (1024, 1024) | Visual embeddings |

Projected visual tokens | (1024, 4096) | Aligned to LLM dimension |

Text tokens | (M, 4096) | Natural-language embeddings |

Fused sequence | (N + M, 4096) | Multimodal context |

Output logits | (V) | Vocabulary predictions |

⸻

🧩 Takeaway

ViT encodes structure → LLM interprets meaning.
Every image becomes a language of embeddings, and the transformer learns to speak that language.
Once fused, text and vision are no longer separate — both live as tokens in the same high-dimensional reasoning space.

visuals {##Visuals}

visual-one

✅

VISUAL 1 — Full-Multimodal Pipeline Diagram

This is the canonical diagram every serious multimodal doc needs.

     ┌─────────────────────────┐

     │       Image (RGB)       │

     └─────────────┬───────────┘

                   │

           Patchify (16×16)

                   │

     ┌─────────────▼──────────────┐

     │   Vision Transformer (ViT) │

     │  Spatial → Feature Embeds  │

     └─────────────┬──────────────┘

                   │ V ∈ ℝⁿˣᵈᵥ

           Linear Projection

                   │ P(V) ∈ ℝⁿˣᵈₜ

     ┌─────────────▼─────────────┐

     │  Fused Token Sequence      │

     │ [P(v₁)…P(vₙ) t₁…tₘ]        │

     └─────────────┬─────────────┘

                   │

          Language Transformer

                   │

     ┌─────────────▼─────────────┐

     │      Reasoning + Text     │

     └─────────────┬─────────────┘

                   │

             Output Logits

                   │

          “A brown cat wearing glasses.”

Where to place it:

Directly after Section 2: System Architecture.

visual-two {##Visual-two}

⸻

✅

VISUAL 2 — Tensor Shape Evolution Table

A crisp table lets the reader see the pipeline in one shot.

Stage Shape Meaning

────────────────────────────────────────────────────────────────────

Raw image (512, 512, 3) Pixels

Patchify (1024, 768) 16×16 RGB patches

ViT output (1024, 1024) Visual embeddings

Project to text dim (1024, 4096) Aligned tokens

Text tokens (M, 4096) Normal LLM embeddings

Fused sequence (1024+M, 4096) Joint context

Attention matrices (L, L) Full multimodal attention

LLM hidden state (L, 4096) Mixed-mode reasoning

Output logits (V) Vocabulary prediction

Drop this under Section 9.

⸻

✅

VISUAL 3 — Cross-Attention Map

This visual explains exactly how the model “looks” at the image while generating text.

 Text Token Query "cat"

              │

              ▼

┌─────────────────────────────────┐

│        Attention Matrix         │

│ Q(text) · K(visual)ᵀ           │

└─────────────────────────────────┘

   ▲       ▲       ▲       ▲

   │       │       │       │

[p₁] [p₂] [p₃] … [pₙ]

Patch embeddings from ViT

Strong activations → ears, fur, tail

Weak activations → background, couch

This makes your page look like a real multimodal interpretability document.

Place this right after “How the label emerges.”

⸻

✅

VISUAL 4 — “LLM Reasoning Stack”

This shows the conceptual climb from geometry → semantics.

┌──────────────────────────────┐

│ Natural Language │

│ (“A brown cat wearing…”) │

└──────────────▲───────────────┘

│

┌──────────────┼───────────────┐

│ Semantic Concepts │

│ cat, glasses, object roles │

└──────────────▲───────────────┘

│

┌──────────────┼───────────────┐

│ Multimodal Attention │

│ links visual + text tokens │

└──────────────▲───────────────┘

│

┌──────────────┼───────────────┐

│ ViT Geometry + Patterns │

│ fur, edges, colors, posture │

└──────────────┼───────────────┘

│

┌──────────────┴───────────────┐

│ Raw Pixels (RGB) │

└──────────────────────────────┘

This makes your article visually explain the cognitive ladder inside multimodal models.

⸻

✅

VISUAL 5 — “What the ViT Actually Sees vs What the LLM Thinks”

Very powerful for readers:

Vision Encoder (ViT) Output

┌────────────────────────────────────────┐

│ Patch embeddings: │

│ • edge orientations │

│ • fur texture gradients │

│ • local color histograms │

│ • blob and contour activations │

└────────────────────────────────────────┘

         ✘ No concepts

         ✘ No objects

         ✘ No language

         ✘ No “cat”

▼ Passed into LLM as vectors ▼

Language Model Interpretation

┌────────────────────────────────────────┐

│ “round ears + whisker pattern + │

│ bilateral symmetry → cat” │

│ │

│ “fur + eyes + object = glasses” │

└────────────────────────────────────────┘

         ✔ Concepts

         ✔ Objects

         ✔ Relationships

         ✔ Explanations

This pair nails the entire philosophy of multimodal alignment.
